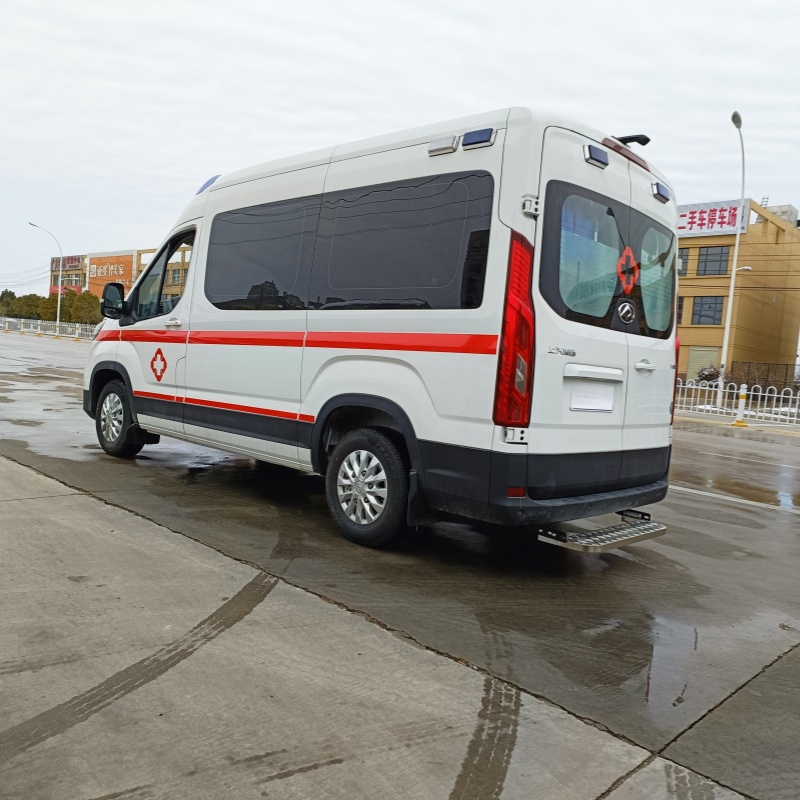

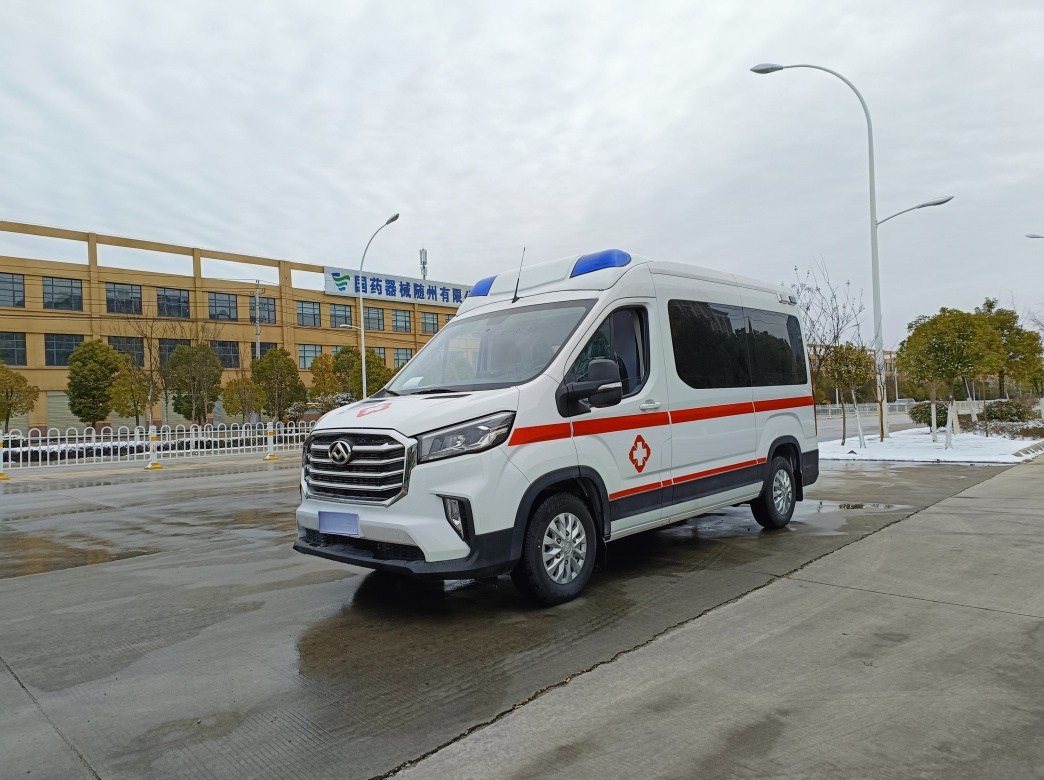

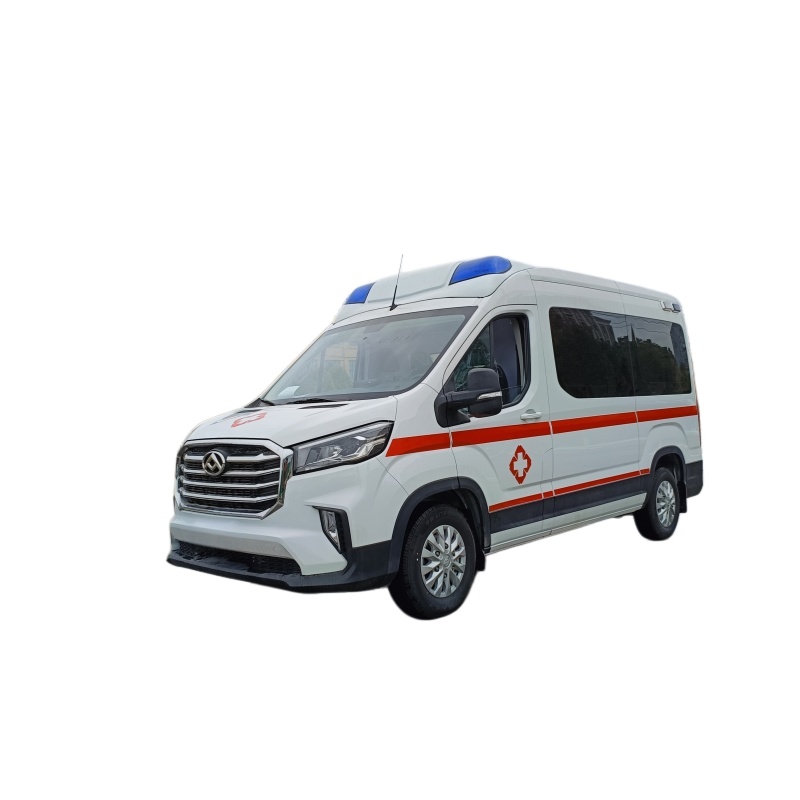

SAIC MAXUS V90 Long Wheelbase Medium Roof Ambulance Monitoring Type

SAIC MAXUS V90 Long Wheelbase Medium Roof Ambulance Monitoring Type

Name: SAIC MAXUS V90 Long Wheelbase Medium Roof Ambulance Monitoring Type
Availability: InStock

An ambulance is a special emergency vehicle dedicated to on-site first aid and patient transportation. As a core specialized vehicle for pre-hospital care, medical transfer and emergency support, its key function is to provide rapid, safe and professional treatment and transportation for the injured and sick. It also undertakes public health emergency tasks, including on-site first aid for sudden illnesses and accidents (such as traffic crashes, industrial injuries, cardiac arrest, etc.), and provides continuous life support during transportation.

Core Highlights:

✅ Stretcher System: Automatic ambulance stretcher, folding stretcher, telescopic stretcher

✅ Transport Type: Basic stretcher + oxygen supply, suitable for short-distance patient transfer and basic emergency care;

✅ Monitoring Type: Equipped with full set of mounting positions for monitoring equipment, independent oxygen supply, and heating/cooling air conditioning, suitable for pre-hospital first aid and critical patient transfer;

✅ Negative Pressure Type: Added with negative pressure ventilation system to achieve negative pressure isolation inside the compartment, suitable for infectious patient transfer

Inquire Now

SAIC MAXUS V90 Long Wheelbase Medium Roof Ambulance Monitoring Type

Your trusted medical rescue solution

Applications

The SAIC MAXUS V90 long-wheelbase mid-roof monitoring ambulance is a special emergency vehicle specially designed for on-site first aid and patient transportation. Equipped with professional medical equipment, it can monitor and treat the injured and sick during transportation. It is widely used in pre-hospital first aid, intra-hospital transfer, emergency rescue and disaster relief, as well as the disposal of public health emergencies. The vehicle features stable chassis performance, a comfortable medical cabin, strong power output and reliable safety performance.

Transfer ambulance: Equipped with basic monitoring equipment for daily visits by emergency centers, used to handle acute and critical illnesses such as myocardial infarction, stroke, and trauma, meeting routine transfer needs.
Monitoring ambulance: The main vehicle type used by urban 120 emergency centers.
Negative-pressure ambulance: Used for the transfer of patients with infectious diseases, COVID-19, and patients with unexplained fever.
Neonatal/maternal-infant ambulance: Equipped with special incubators, oxygen supply and monitoring equipment to ensure the safety of newborns, as well as monitoring devices for pregnant women.

Why choose our SAIC Maxus V90 Long Wheelbase Mid-Roof Monitoring Ambulance?

Extensive ambulance coverage: monitoring ambulances, transfer ambulances, negative-pressure ambulances, intensive care ambulances, neonatal/maternal-infant ambulances, etc.
Medical cabin layout: The medical cabin features spacious space and rational layout, accommodating automatic loading stretchers, two medical staff members and multiple sets of medical equipment, ensuring smooth operation procedures.
Complete medical configuration: Standard-equipped with 10-liter oxygen cylinder + oxygen supply control system, disinfection and protection system, aluminum alloy rail-type infusion stand, medical non-slip and corrosion-resistant PVC flooring, independent front and rear air conditioners, ultraviolet disinfection lamp, 500W inverter + 220V/12V power sockets, meeting basic first aid and transfer requirements.
Layout design: The driving area is separated and independent from the medical cabin, ensuring a dedicated working space.

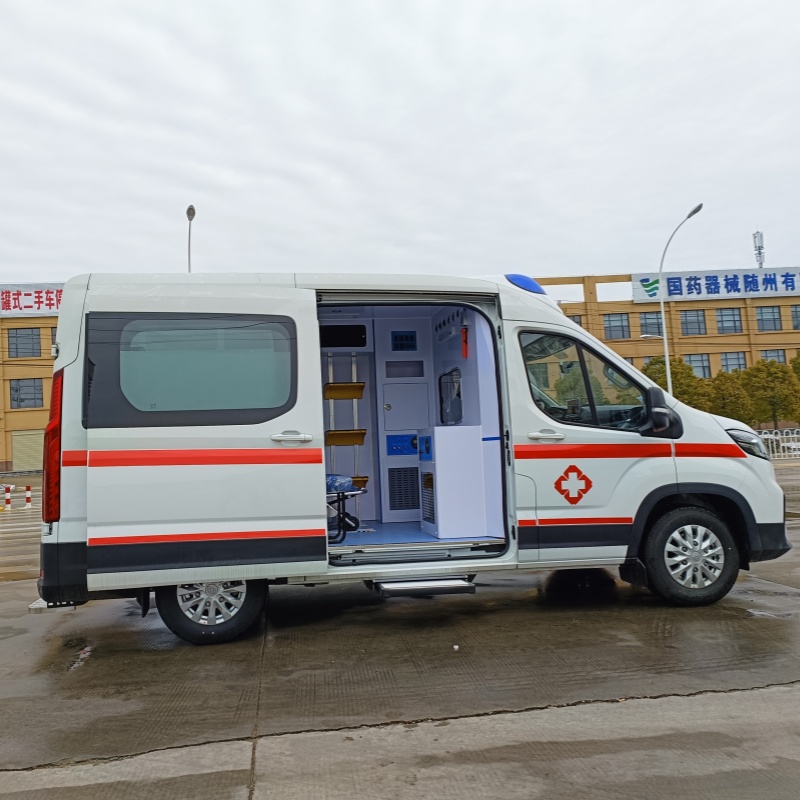

High operational efficiency: Right-side electric sliding doors and upward-swinging rear doors enable faster stretcher loading/unloading and patient boarding/alighting; 100W siren + I-shaped warning lights + flashing lights provide clear warnings at night and in severe weather conditions.

Comprehensive Safety Protection

Warning system: warning lights, sirens, loudspeakers, and identification paint
Medical cabin: non-slip, mildew-resistant, easy to clean, corrosion-resistant
Stable and reliable: high speed and stability ensure safe treatment during transportation
Negative pressure vehicle: Efficient filtration to prevent cross-infection

Technical Specifications

Truck name	SAIC MAXUS V90 Monitoring Ambulance
Cabin	Driving type 4x2
	2 seats, with A/C, LHD
Vehicle Main Dimensions	Overall dimensions (L x W x H)	5546×2062×2690mm
	Wheel base (mm)	3366
Weight (KG)	Tare Weight	2550
	Gross Vehicle Weight	3550
Max. driving speed (km/h)	110
Engine	engine	SC20M150Q6 2.0T
	Horse power	150hp
	Displacement	2.0L
	Emission standard	Euro 6
Gearbox	6 forwards & 1 reverse
Tire	215/75R16LT, 6pcs with 1 spare

Walkie talkie
	1	pair
Stainless steel trash can	1	each
Rear door bench seat armrests	1	each
Fixed infusion bottle hook	2	each

Video

Drawing

Main Components

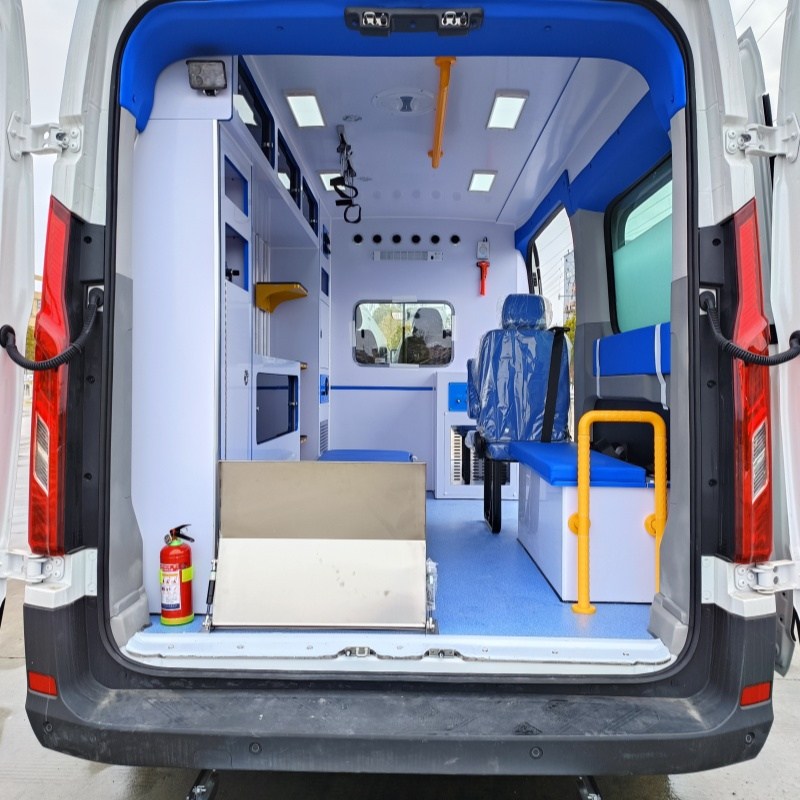

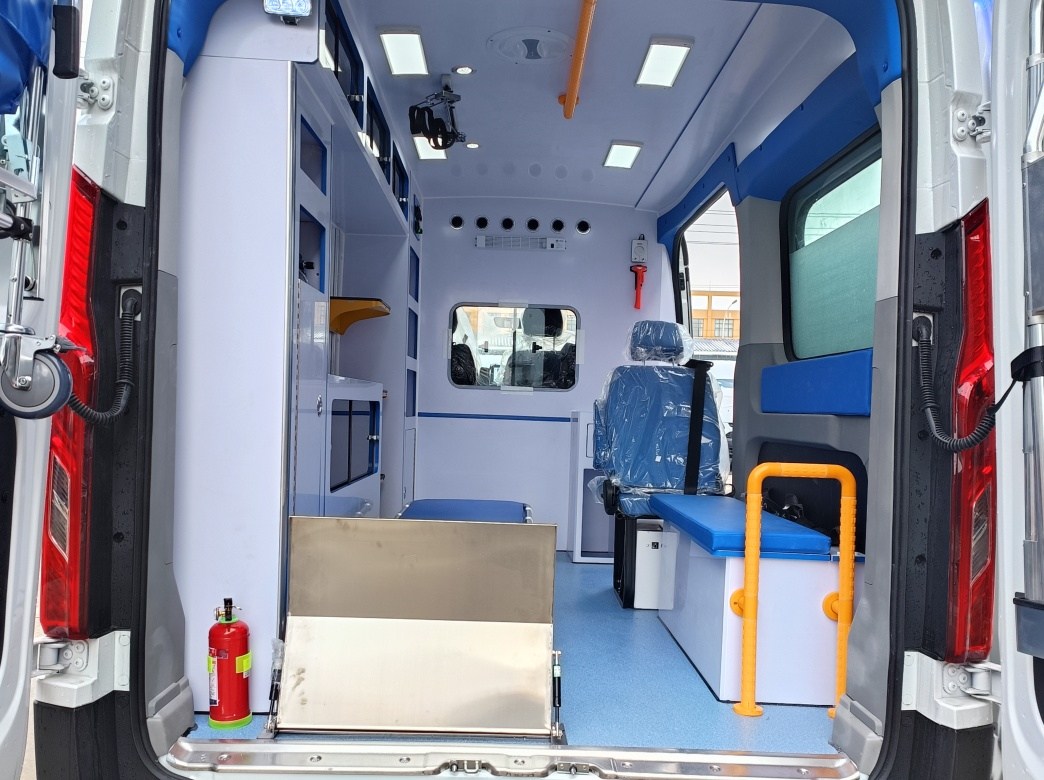

Interior view of the medical cabin
LED lighting and surgical lamps are installed on the top of the medical cabin. The cold light design reduces tissue thermal damage and saves energy
Inside the medical cabin
Storage area on the right side，used for placing first aid equipment
Inside the medical cabin

Medical and escort area with special seats equipped with safety belts

Rescue capsule
It is a core workspace of ambulances specially used for pre-hospital first aid and patient transportation
Emergency stretcher
Lifting emergency stretcher, facilitating medical staff in getting on and off the vehicle for operation
Oxygen cylinder
Provide patients with immediate and continuous oxygen supply to save lives and stabilize their conditions.

Reliable Warranty & Global Support

12-Month Warranty: Full vehicle coverage (excluding wear parts) for your peace of mind.
Instant Technical Support: 24/7 technical feedback with immediate solutions for any fault.
Free Operator Training: Free operation training: On-site or remote training on safety specifications for medical compartments and equipment operation.
Global Parts Supply: Fast delivery of original Foton parts and medical compartment parts to minimize downtime.
Multi-Brand Support: Professional diagnostic guidance even for your existing fleet of other brands.

Frequently Asked Questions

Q: How long is the delivery period for a customized Foton ambulance?

A: Standard configurations are usually ready in 15–25 days. Custom painting or specific emission requirements may take up to 35 days.

Q: Does the truck come with a certification for international standards?

A: Yes, our aerial work platforms comply with ISO and CE standards, and the FOTON chassis meets global quality benchmarks.

Q: Can this truck operate in narrow city streets?

A: Absolutely. The FOTON chassis is designed with a compact turning radius, making it highly maneuverable for urban maintenance.

Q: What are your shipping conditions?

A:Normally,we transport trucks via roll-on/roll-off ships, bulk carriers, and containers. Spare parts are packed in wooden cases and transported by container.

Q: Can you fully customize according to my requirements?

A: Yes. We have a professional R&D team and can accurately produce products according to your requirements.
