Ford Transit T8 monitoring ambulance is mainly used for emergency medical rescue.
Your trusted medical rescue solution
Applications
TThe Ford Transit T8 monitoring ambulance is a specialized emergency vehicle designed specifically for on-site first aid and patient transportation. Equipped with professional medical equipment, it enables monitoring and treatment of the injured and sick during transit, and is widely used in pre-hospital first aid, intra-hospital transfer, disaster relief, and the response to public health emergencies. The vehicle features a stable chassis, a comfortable medical cabin, strong power, and reliable safety performance.
- Transfer ambulance: Equipped with basic monitoring equipment for daily visits by emergency centers, used to handle acute and critical illnesses such as myocardial infarction, stroke, and trauma, meeting routine transfer needs.
- Monitoring ambulance: The main vehicle type used by urban 120 emergency centers.
- Negative-pressure ambulance: Used for the transfer of patients with infectious diseases, COVID-19, and patients with unexplained fever.
- Neonatal/maternal-infant ambulance: Equipped with special incubators, oxygen supply and monitoring equipment to ensure the safety of newborns, as well as monitoring devices for pregnant women.
Why choose our Ford Transit T8 Monitoring Ambulance?
- Extensive ambulance coverage: monitoring ambulances, transfer ambulances, negative-pressure ambulances, intensive care ambulances, neonatal/maternal-infant ambulances, etc.
- Medical cabin layout: The medical cabin features spacious space and rational layout, accommodating automatic loading stretchers, two medical staff members and multiple sets of medical equipment, ensuring smooth operation procedures.
- Complete medical configuration: Standard-equipped with 10-liter oxygen cylinder + oxygen supply control system, disinfection and protection system, aluminum alloy rail-type infusion stand, medical non-slip and corrosion-resistant PVC flooring, independent front and rear air conditioners, ultraviolet disinfection lamp, 500W inverter + 220V/12V power sockets, meeting basic first aid and transfer requirements.
- Layout design: The driving area is separated and independent from the medical cabin, ensuring a dedicated working space.
- High operational efficiency: Right-side electric sliding doors and upward-swinging rear doors enable faster stretcher loading/unloading and patient boarding/alighting; 100W siren + I-shaped warning lights + flashing lights provide clear warnings at night and in severe weather conditions.
-
Comprehensive Safety Protection
- Warning system: warning lights, sirens, loudspeakers, and identification paint
- Medical cabin: non-slip, mildew-resistant, easy to clean, corrosion-resistant
- Stable and reliable: high speed and stability ensure safe treatment during transportation
- Negative pressure vehicle: Efficient filtration to prevent cross-infection
Technical Specifications
|
Truck name
|
Ford Transit T8 Monitoring Ambulance
|
|
|
Driving type 4x2
|
|
2 seats, with A/C, LHD
|
|
|
Overall dimensions (L x W x H)
|
5998×2164×2910mm
|
|
Wheel base (mm)
|
3750
|
|
|
Tare Weight
|
3200
|
|
Gross Vehicle Weight
|
4495
|
|
Max. driving speed (km/h)
|
90
|
|
|
Model
|
4K22D4M
|
|
Horse power
|
174hp
|
|
Displacement
|
2.3L
|
|
Emission standard
|
Euro 6
|
|
Gearbox
|
6 forwards & 1 reverse
|
|
Tire
|
7.00R16, 6pcs with 1 spare
|
|
Walkie talkie
|
| |
1
|
pair
|
|
|
Stainless steel trash can
|
1
|
each
|
|
|
Rear door bench seat armrests
|
1
|
each
|
|
|
Fixed infusion bottle hook
|
2
|
each
|
|
|
Video
Drawing
Main Components
-

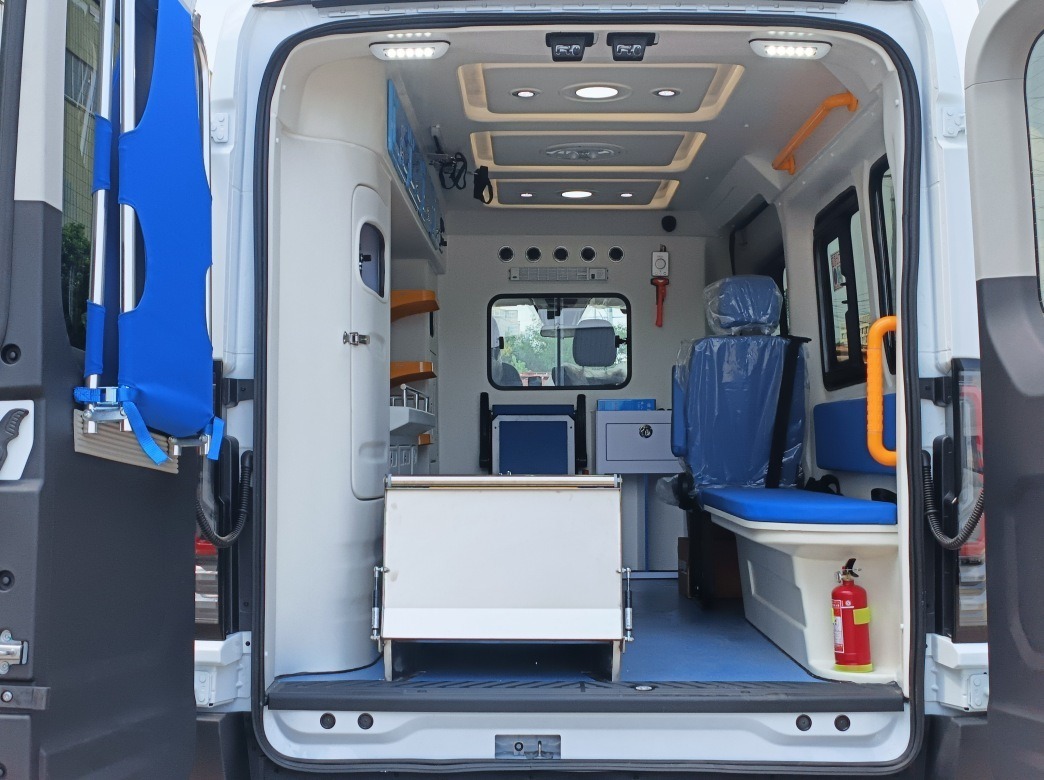

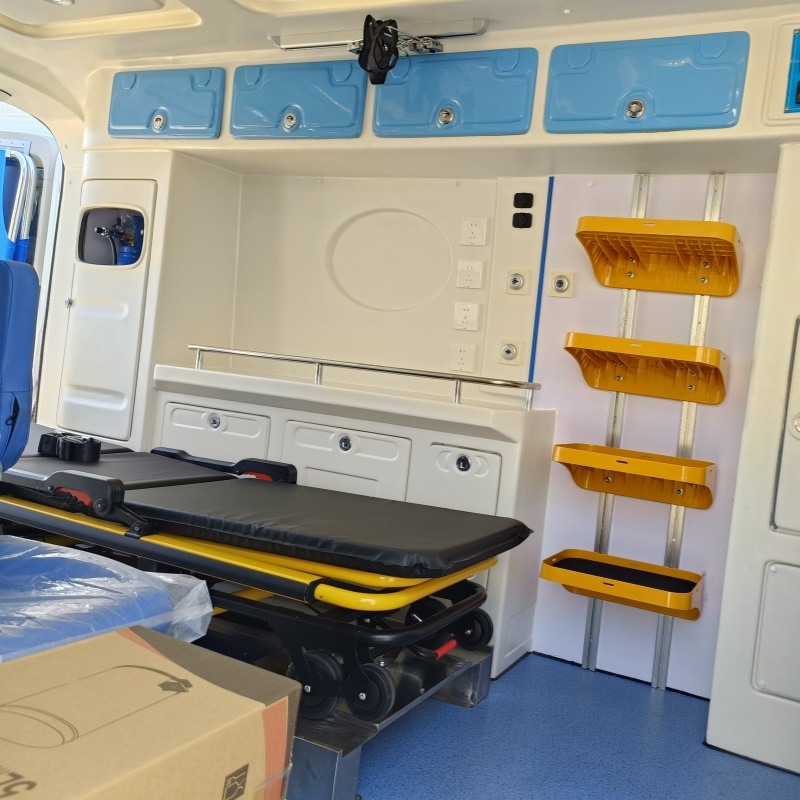

Interior view of the medical cabin
LED lighting and surgical lamps are installed on the top of the medical cabin. The cold light design reduces tissue thermal damage and saves energy
-
-
-
-
Rescue capsule
It is a core workspace of ambulances specially used for pre-hospital first aid and patient transportation
-
Emergency stretcher
Lifting emergency stretcher, facilitating medical staff in getting on and off the vehicle for operation
-
Oxygen cylinder
Provide patients with immediate and continuous oxygen supply to save lives and stabilize their conditions.
Reliable Warranty & Global Support
- 12-Month Warranty: Full vehicle coverage (excluding wear parts) for your peace of mind.
- Instant Technical Support: 24/7 technical feedback with immediate solutions for any fault.
- Free Operator Training: Free operation training: On-site or remote training on safety specifications for medical compartments and equipment operation.
- Global Parts Supply: Fast delivery of original Foton parts and medical compartment parts to minimize downtime.
- Multi-Brand Support: Professional diagnostic guidance even for your existing fleet of other brands.
Frequently Asked Questions
Q: How long is the delivery period for a customized Foton ambulance?
A: Standard configurations are usually ready in 15–25 days. Custom painting or specific emission requirements may take up to 35 days.
Q: Does the truck come with a certification for international standards?
A: Yes, our aerial work platforms comply with ISO and CE standards, and the FOTON chassis meets global quality benchmarks.
Q: Can this truck operate in narrow city streets?
A: Absolutely. The FOTON chassis is designed with a compact turning radius, making it highly maneuverable for urban maintenance.
Q: What are your shipping conditions?
A:Normally,we transport trucks via roll-on/roll-off ships, bulk carriers, and containers. Spare parts are packed in wooden cases and transported by container.
Q: Can you fully customize according to my requirements?
A: Yes. We have a professional R&D team and can accurately produce products according to your requirements.
