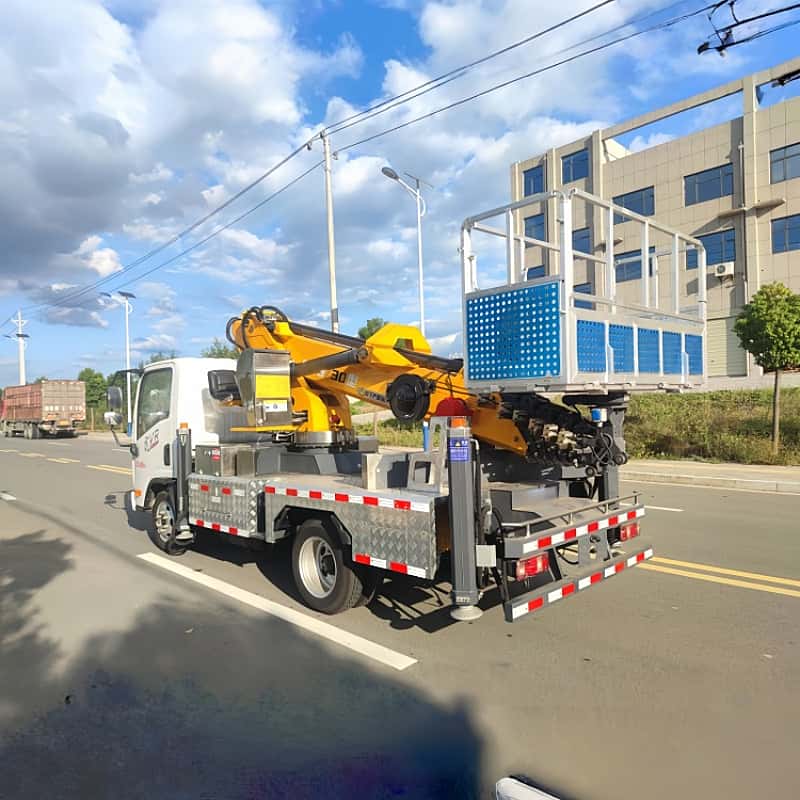

FAW 28m Telescopic Aerial Work Truck

Name: FAW 28m Telescopic Aerial Work Truck
Availability: InStock

This professional-grade 28-meter aerial work platform truck is manufactured on a Chinese-made FAW chassis, combining high-end operating equipment with a high-strength telescopic boom. It is designed to deliver maximum stability and operational precision, making it suitable for installation, maintenance and cleaning tasks in municipal, power, telecommunications, bridge and large-scale venue projects.

Highlights:

✅ Max Working Height: 28Meters

✅ Chassis: Made in China Isuzu chassis 4x2 (left/right hand drive available)

✅ Rotation: 360° continuous slewing

✅ Safety: Emergency stop & outrigger interlock system

Inquire Now

FAW 28m Telescopic Boom Aerial Work Platform for Maintenance & Construction

Your Realiable High-Altitude Access Solutions

Applications

This FAW 28m aerial work platform is mainly used for engineering rental, curtain wall construction, rooftop waterproofing, solar panel installation, surveillance system installation and maintenance, advertising installation, power maintenance, garden tree pruning, air conditioning installation, ship maintenance, road and bridge repair, etc.

Municipal Maintenance: Street light installation and repair.
Utility & Power: High-voltage cable maintenance.
Building Facades: Window cleaning and external wall painting.
Telecommunications: 5G base station maintenance and antenna adjustment.

Why Choose Our 28m FAW Aerial Work Truck

Leading and Flexible Operating Range: Maximum operating height of 28m and operating radius of 16m, enabling flexible maneuvering over obstacles such as trees, buildings, and cables.
High-Load Platform: Supports simultaneous operation by 2–3 people plus tools for higher efficiency.
Intelligent Remote Control: Wireless operation distance up to 200 meters, eliminating blind spots and keeping operators away from harsh weather conditions.
Efficient Movements: Supports simultaneous rotation, luffing, and telescoping, greatly reducing task completion time.
Stable and Reliable: Buffer control and imported proportional valves ensure shock-free and precisely controlled movements.
Sturdy and Durable: High-strength steel structure and internationally branded components guarantee long-term stable operation.
Ergonomic Comfort: Intuitive icon-based control system and anti-fatigue seat make long-duration operations safer and more comfortable.

Comprehensive Safety Protection

Emergency Power Source: Even if the chassis engine stalls, the emergency pump can lower the bucket to the ground.
Outrigger Interlock: If the outriggers are not properly extended, the operator cannot work on the upper platform; if the upper platform is not retracted, the outriggers cannot be retracted.
Automatic Leveling: The bucket remains level regardless of boom angle changes.

Technical Specifications

Category	Item	Unit	Data
Overall Dimensions	Length	mm	5998
	Width	mm	2098
	Height	mm	2750
	Rated Passengers	Persons	2
	Wheelbase	mm	2800
	Tires	/	6.50R16
Main Performance	Platform Rated Load	kg	200
	Retracted Boom Length	m	6
	Fully Extended Boom Length	m	28.3
	Max. Working Height	m	28
	Working Radius at Max. Height	m	4.5
	Max. Working Radius	m	16
	Max. Height at Max. Radius	m	24
	Outrigger Span (Front & Rear)	mm	6000
	Outrigger Span (Left & Right)	mm	5800
	Turntable Rotation	°	±360° continuous
	Basket Rotation	°	±360° continuous

Video

Drawing

Main Components

Cradle console
Control the extension, lifting and rotation of the boom
Electric control operating console
Integrate safety monitoring and emergency stop functions to ensure the safety of operators and equipment..
Ground remote control
It is mainly used for ground personnel to control vehicles in specific scenarios.

Hydraulic cylinder
Drives the lifting arm/boom to perform key actions such as lifting, luffing, telescoping and so on
Stable support system
Before operation, the outriggers extend downward and touch the ground
Horizontal & Vertical outriggers
Form a complete four-point support system to ensure the vehicle body remains level and guarantee operational accuracy and safety

Reliable Warranty & Global Support

12-Month Warranty: Full vehicle coverage (excluding wear parts) for your peace of mind.
Instant Technical Support: 24/7 technical feedback with immediate solutions for any fault.
Free Operator Training: On-site or remote training on hydraulics, safety, and operation.
Global Parts Supply: Fast shipping of genuine FAW and hydraulic components to minimize downtime.
Multi-Brand Support: Professional diagnostic guidance even for your existing fleet of other brands.

Frequently Asked Questions

Q: What is the delivery time for a customized 35m aerial truck?

A: Standard configurations are usually ready in 15–25 days. Custom painting or specific emission requirements may take up to 35 days.

Q: Does the truck come with a certification for international standards?

A: Yes, our aerial work platforms comply with ISO and CE standards, and the FAW chassis meets global quality benchmarks.

Q: Can this truck operate in narrow city streets?

A: Absolutely. The FAW 4x2 chassis is designed with a compact turning radius, making it highly maneuverable for urban maintenance.

Q: What are your shipping conditions?

A:Normally,we transport trucks via roll-on/roll-off ships, bulk carriers, and containers. Spare parts are packed in wooden cases and transported by container.

Q: Can you fully customize according to my requirements?

A: Yes. We have a professional R&D team and can accurately produce products according to your requirements.
