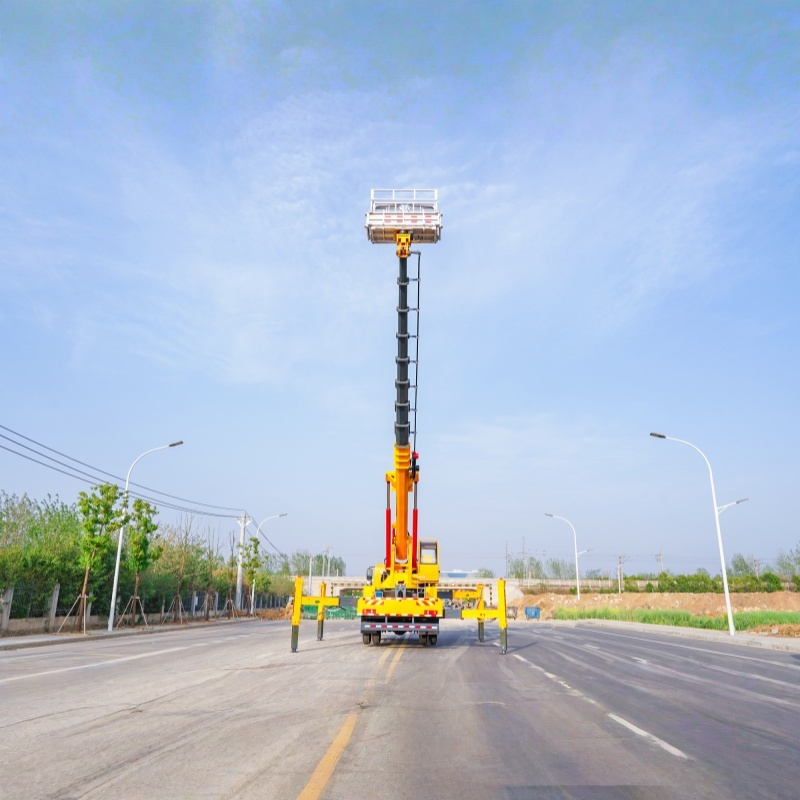

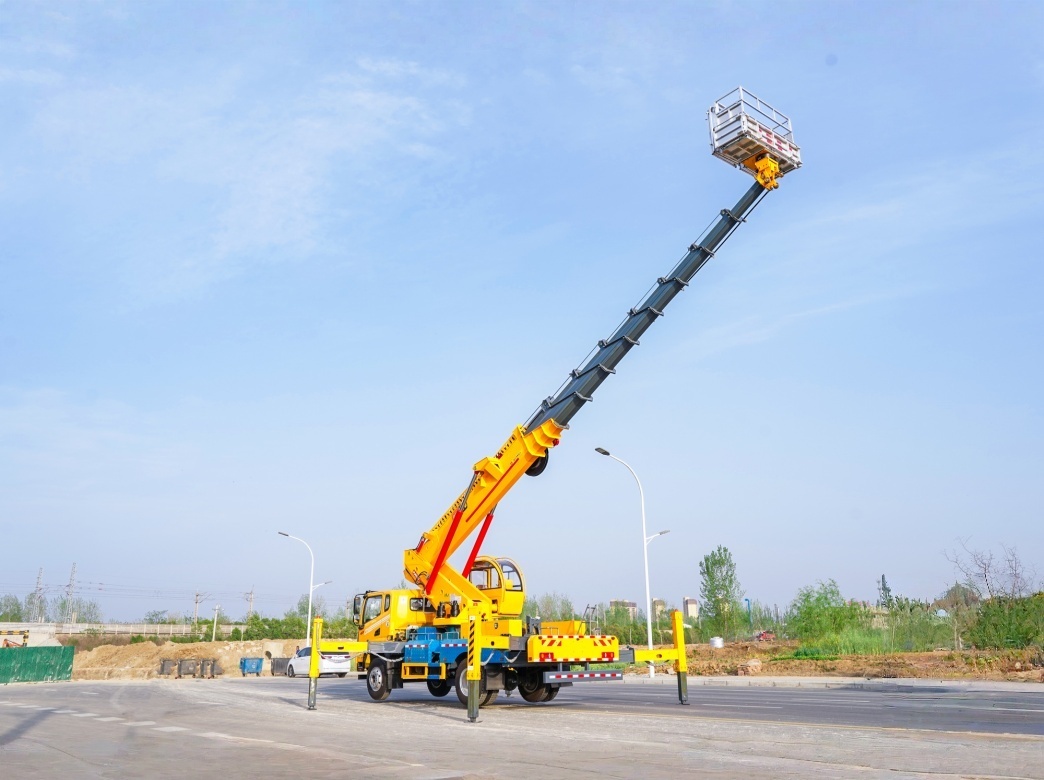

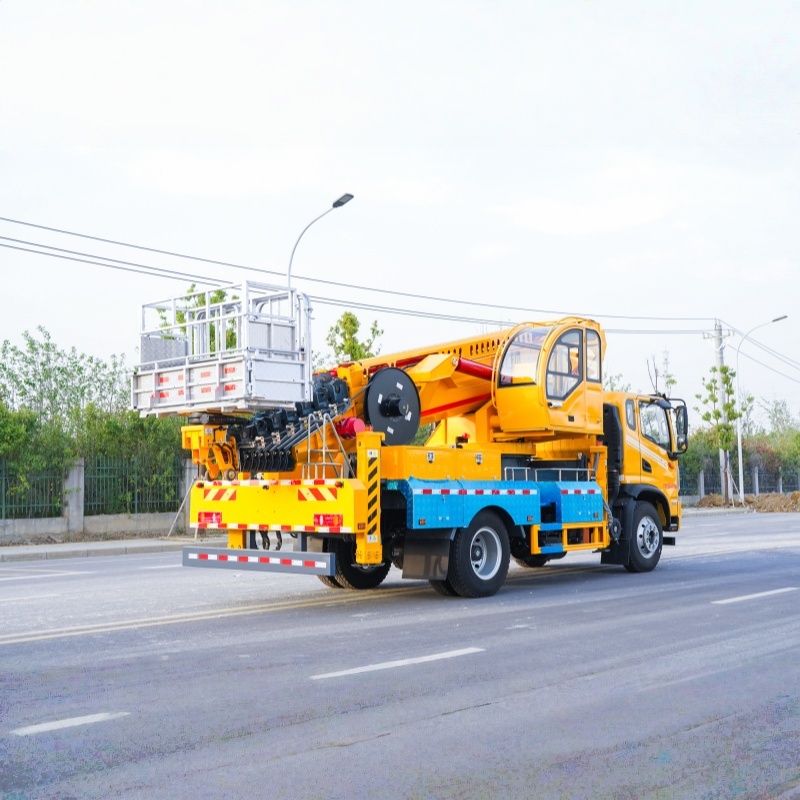

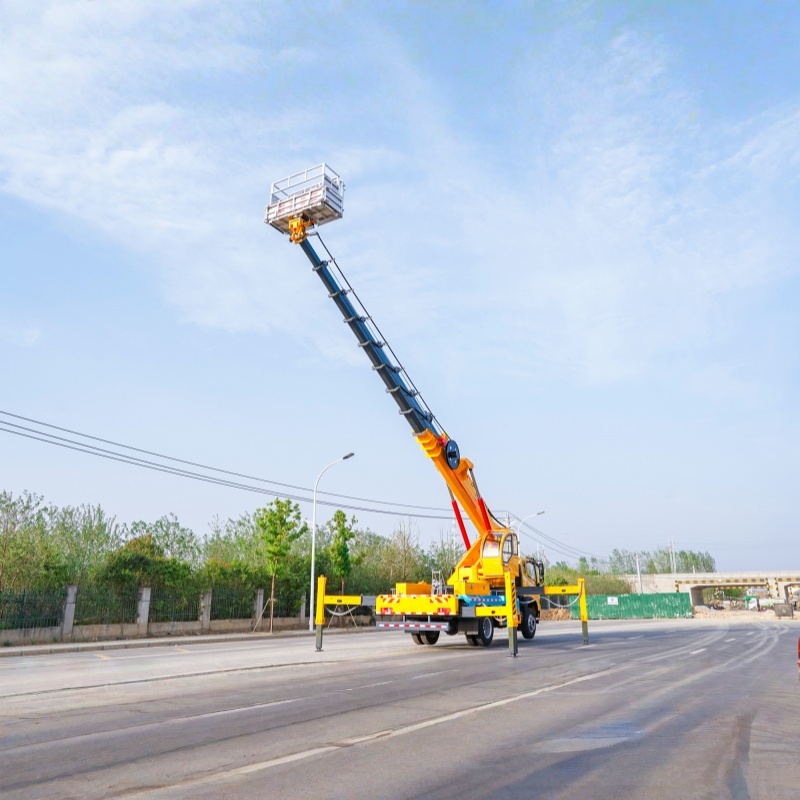

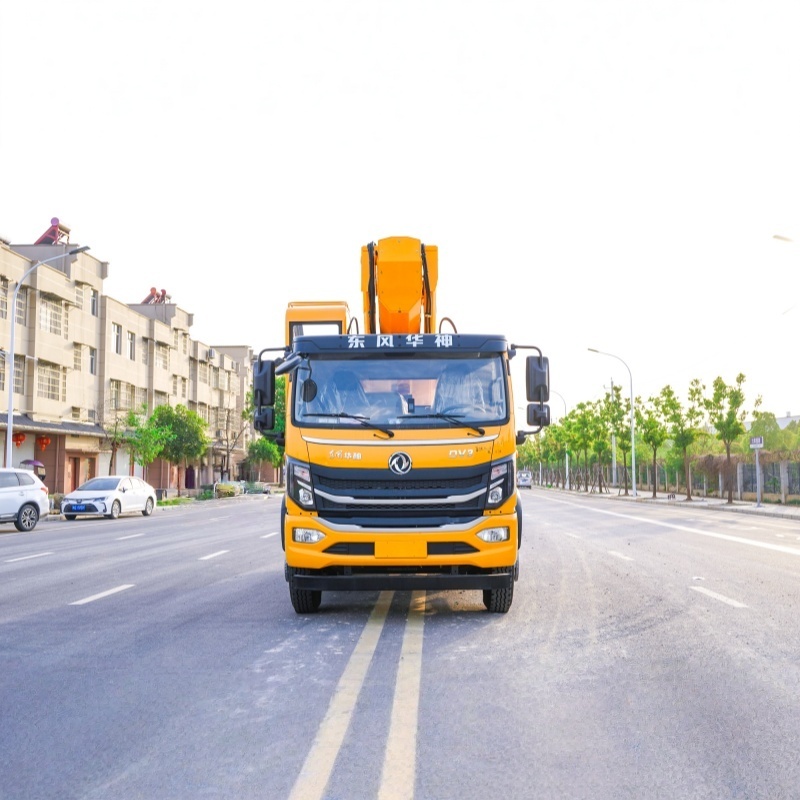

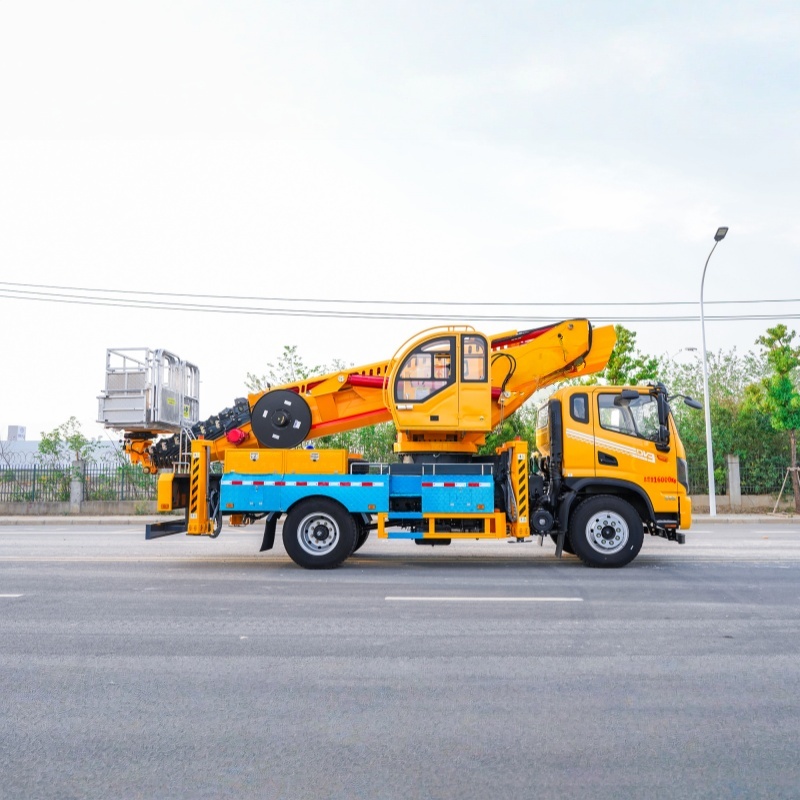

Dongfeng 47m Heavy-Duty Telescopic Boom Aerial Work Platform Truck

Dongfeng 47m Heavy-Duty Telescopic Boom Aerial Work Platform Truck

Name: Dongfeng 47m Heavy-Duty Telescopic Boom Aerial Work Platform Truck
Availability: InStock

This Dongfeng 47m aerial work platform truck adopts a heavy-duty telescopic boom with 47m working height and long outreach for large‑scale operations. It features stable H‑type outriggers, 360° continuous rotation, high load capacity, smooth hydraulic control, and multiple safety protections. The reliable Dongfeng chassis offers strong power, good road adaptability, easy transfer between job sites, low maintenance cost, and stable performance under hot and harsh working conditions in Philippines, Middle East, Central Asia and Southeast Asia.

Highlights:

✅ Max Working Height:47 meters

✅ Chassis: Original Isuzu 4x2(left/right hand drive available)

✅ Rotation: 360° continuous slewing

✅ Safety: Emergency stop & outrigger interlock system

Inquire Now

dongfeng 47m Telescopic Boom Aerial Work Platform for Maintenance & Construction

Your Realiable High-Altitude Access Solutions

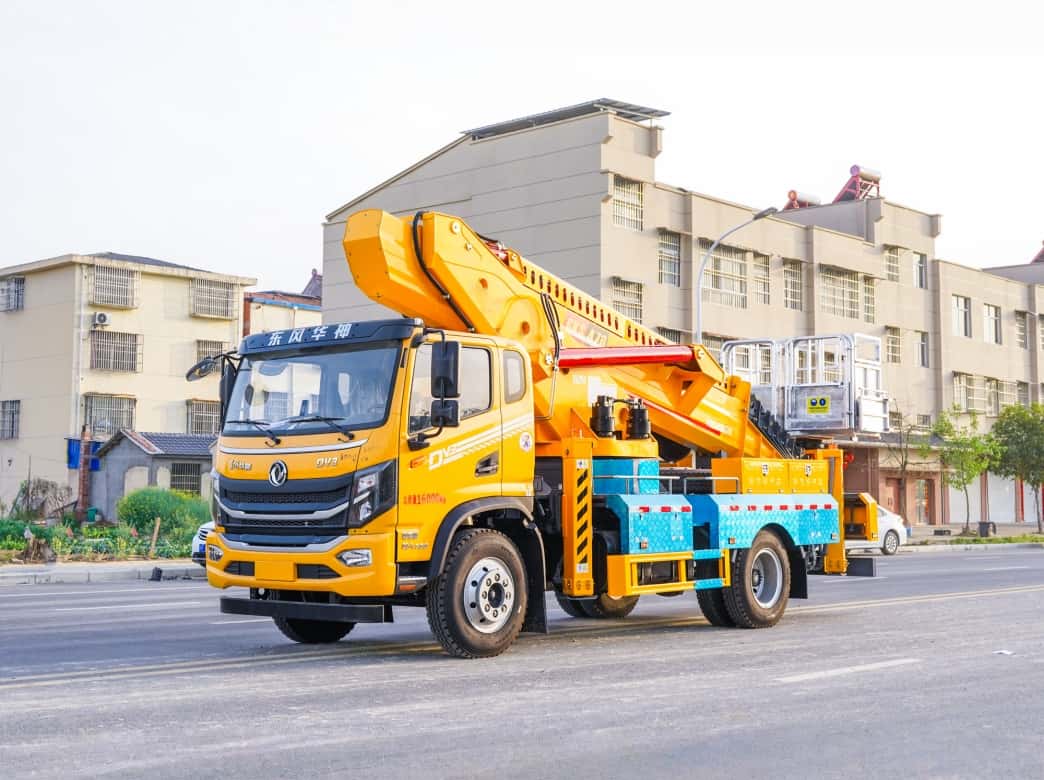

ISUZU 28m Telescopic Boom Aerial Work Platform

Applications

This dongfeng 47-meter platform aerial work truck has a spacious operation space and can be built by many people at the same time. It is widely used in high-altitude comprehensive operations such as municipal street lamp power maintenance, exterior wall curtain wall maintenance, garden high branch pruning, factory steel structure elevated maintenance and traffic sign installation.

Municipal Maintenance: dongfeng 47-meter platform aerial work truck has a spacious operation space, and multiple people can work at the same time
Utility & Power: High-voltage cable maintenance.
Building Facades: Window cleaning and external wall painting.
Telecommunications: 5G base station maintenance and antenna adjustment.

Why Choose Our 47m dongfeng Aerial Work Truck

Small in size & Flexible: This 47m dongfeng aerial work truck with cargo box integrates high-altitude operation and material transportation, ideal for municipal & maintenance projects.
Leading Reach: Massive 47m working height and 25m outreach, powered by a fast 9-section synchronous boom.
Smart Remote Control: Wireless operation up to 200m eliminates blind spots and keeps operators out of extreme weather.
High-Efficiency Movements: Supports simultaneous rotation, luffing, and extension to slash task completion time.
Smooth & Stable: Buffer control and imported proportional valves ensure jerk-free, precision movement.
Premium Durability: High-strength steel structure and global-brand components for long-term reliability.
Ergonomic Comfort: Intuitive icon-based controls and fatigue-reducing seating for safer, longer operations.

Comprehensive Safety Protection

Emergency Power Source: Even if the chassis engine stalls, the emergency pump can lower the bucket to the ground.
Outrigger Interlock: If the outriggers are not properly extended, the operator cannot work on the upper platform; if the upper platform is not retracted, the outriggers cannot be retracted.
Automatic Leveling: The bucket remains level regardless of boom angle changes.

Technical Specifications

Category	Item	Unit	Data
Overall Dimensions	Length	mm	8600
	Width	mm	2505
	Height	mm	3690
	Rated Passengers	Persons	3
	Wheelbase	mm	3950
	Tires	/	9.00R16
Main Performance	Platform Rated Load	kg	200
	Retracted Boom Length	m	12.5
	Fully Extended Boom Length	m	45.5
	Max. Working Height	m	47
	Working Radius at Max. Height	m	11.8
	Max. Working Radius	m	16/26
	Max. Height at Max. Radius	m	47
	Outrigger Span (Front & Rear)	mm	1310
	Outrigger Span (Left & Right)	mm	3340
	Turntable Rotation	°	±360° continuous
	Basket Rotation	°	±360° continuous

Video

Drawing

Main Components

Cradle console
Control the extension, lifting and rotation of the boom
Electric control operating console
Integrate safety monitoring and emergency stop functions to ensure the safety of operators and equipment.
Ground remote control
It is mainly used for ground personnel to control vehicles in specific scenarios.

Hydraulic cylinder
Drives the lifting arm/boom to perform key actions such as lifting, luffing, telescoping and so on
Stable support system
Before operation, the outriggers extend downward and touch the ground
Horizontal & Vertical outriggers
Form a complete four-point support system to ensure the vehicle body remains level and guarantee operational accuracy and safety

Reliable Warranty & Global Support

12-Month Warranty: Full vehicle coverage (excluding wear parts) for your peace of mind.
Instant Technical Support: 24/7 technical feedback with immediate solutions for any fault.
Free Operator Training: On-site or remote training on hydraulics, safety, and operation.
Global Parts Supply: Fast shipping of genuine dongfeng and hydraulic components to minimize downtime.
Multi-Brand Support: Professional diagnostic guidance even for your existing fleet of other brands.

Frequently Asked Questions

Q: What is the delivery time for a customized 47m aerial truck?

A: Standard configurations are usually ready in 15–25 days. Custom painting or specific emission requirements may take up to 35 days.

Q: Does the truck come with a certification for international standards?

A: Yes, our aerial work platforms comply with ISO and CE standards, and the dongfeng chassis meets global quality benchmarks.

Q: Can this truck operate in narrow city streets?

A: Absolutely. The dongdeng 4x2 chassis is designed with a compact turning radius, making it highly maneuverable for urban maintenance.

Q: What are your shipping conditions?

A:Normally,we transport trucks via roll-on/roll-off ships, bulk carriers, and containers. Spare parts are packed in wooden cases and transported by container.

Q: Can you fully customize according to my requirements?

A: Yes. We have a professional R&D team and can accurately produce products according to your requirements.
