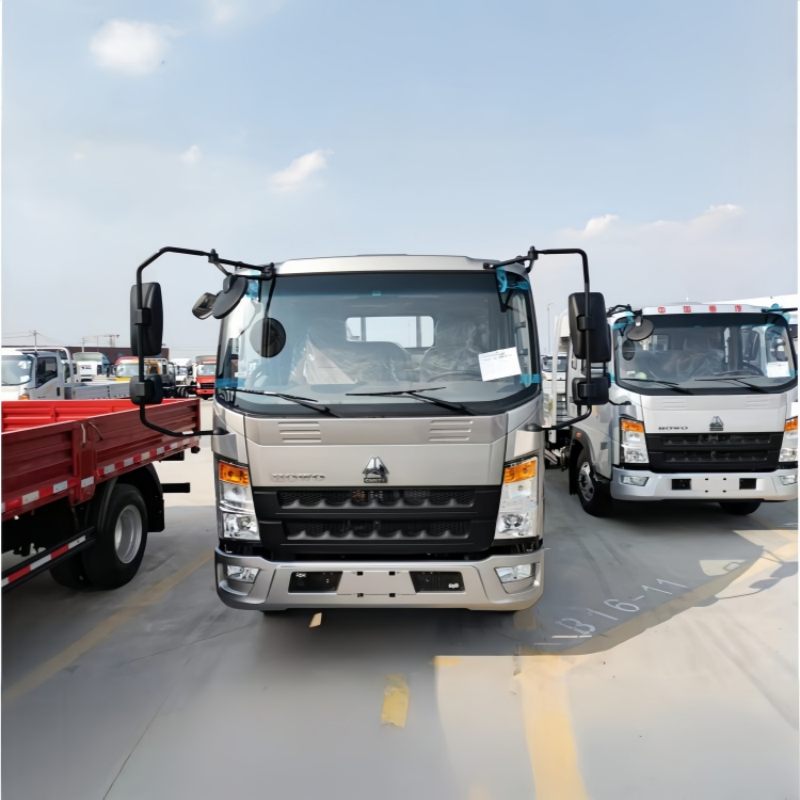

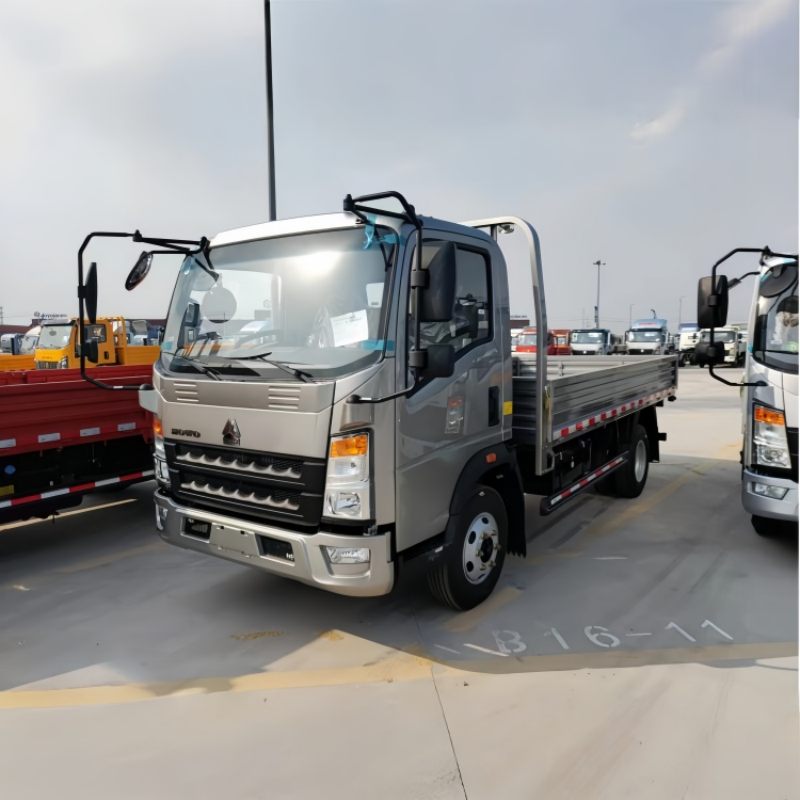

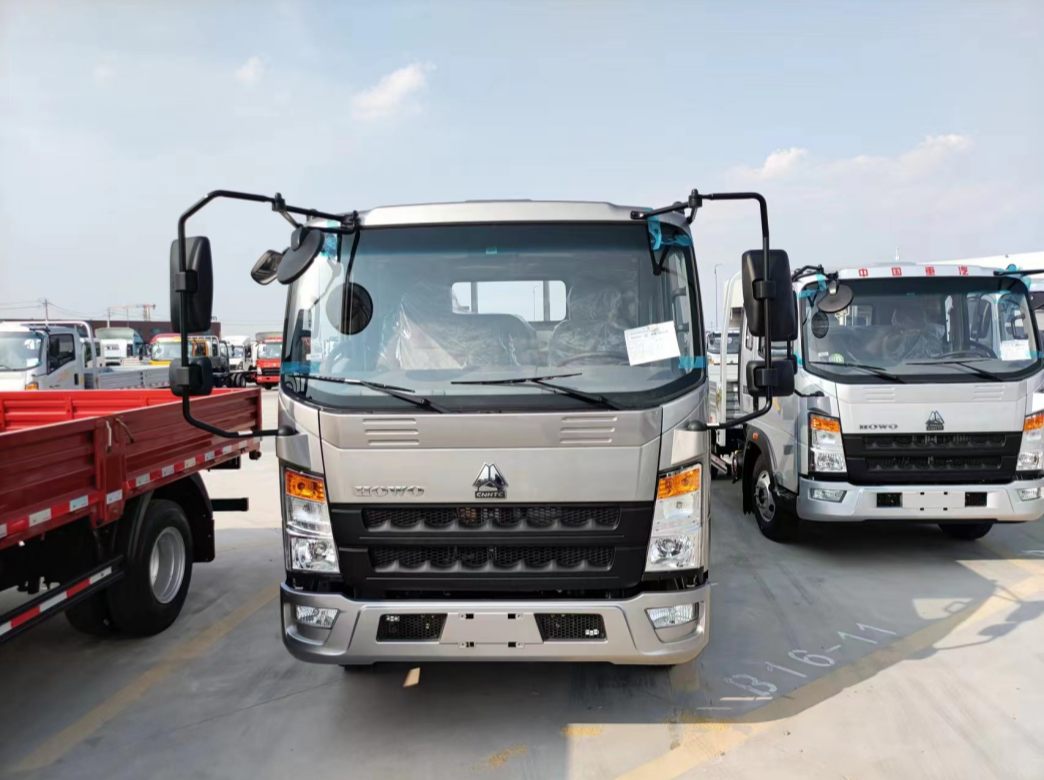

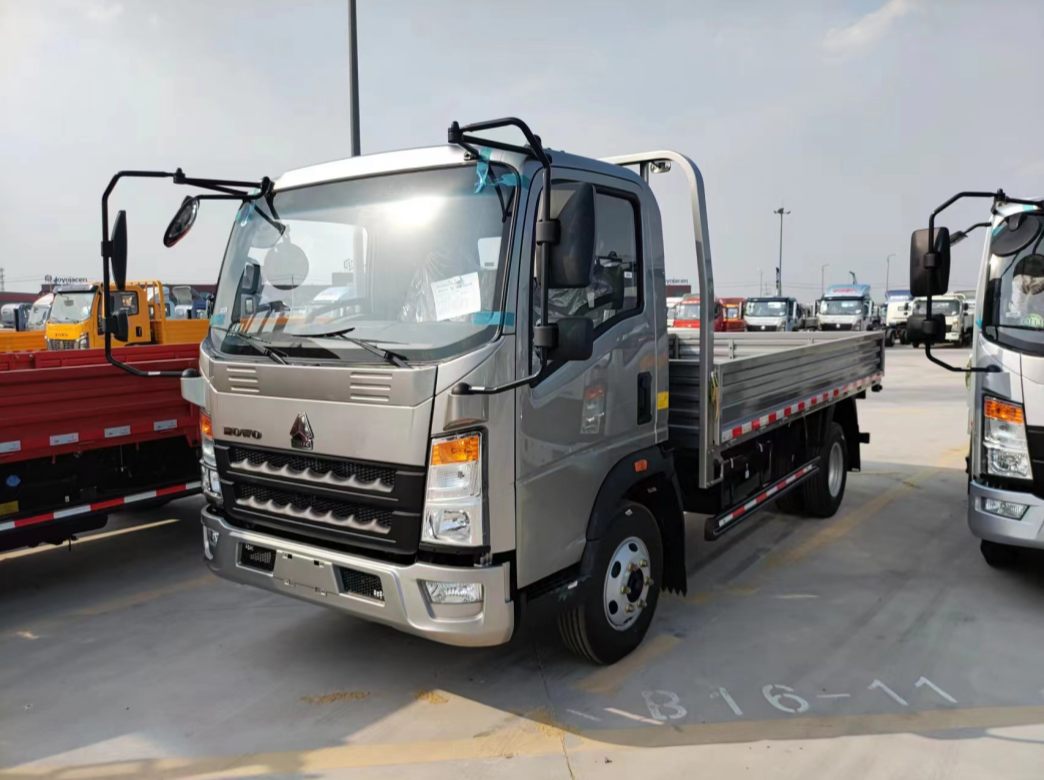

4x2 single-row heavy-duty cargo truck with side rails, suitable for urban distribution, supermarket and store replenishment, and other transportation scenarios
Your trusted solution for stake-bed cargo trucks.
Applications
This Sinotruk stake dump truck is mainly used for material loading and transportation, construction waste removal, municipal maintenance, leasing, agricultural product transportation, urban distribution, short-distance industrial and mining transportation, etc.
- Municipal maintenance: transportation of road materials, muck and seedlings
- Urban and rural logistics: agricultural product transportation and urban distribution
- Construction waste: muck and waste can be self-unloaded
- Special Functions: Leasing and Engineering Outsourcing
Why choose our Sinotruk stake-bed trucks?
- Efficient Loading and Unloading: Equipped with hydraulic self-dumping and fence plate structures, bulk cargo can be directly dumped, and piece goods can be flexibly bound, saving a great deal of loading and unloading time compared with ordinary trucks.
- Flexible Passability: The light truck version has a body length of less than 6 meters and a short wheelbase, enabling smooth passage on narrow urban streets, rural roads, and construction site access roads.
- Reliable Load-Bearing Capacity: Reinforced frame and chassis, suitable for short-distance heavy-duty transportation of 5–18 tons, with high durability.
Comprehensive Safety Protection
- 360° panoramic view system: Covers blind spots around the vehicle, allowing clear observation of the surrounding environment when reversing, meeting oncoming vehicles on narrow roads, or operating at construction sites, eliminating scratches and collisions caused by visual blind spots.
- Brake system: Equipped with standard air-cut brakes + ABS anti-lock braking system. EBD electronic brake-force distribution and ESC electronic stability control are available as optional features, providing more stable braking on downhill and slippery roads and preventing sideslip and tail flick.
- Hydraulic dump safety lock: Automatically locks when the cargo box is lifted, preventing accidental lowering of the cargo box due to improper operation and protecting the safety of loading and unloading personnel.
Technical Specifications
| Category |
Item |
Unit |
Data |
| Overall Dimensions |
Length |
mm |
5995 |
| Width |
mm |
2020 |
| Height |
mm |
2450 |
| Rated Passengers |
Persons |
3 |
| Wheelbase |
mm |
3280 |
| Tires |
/ |
7.00R16 |
| Main Performance |
Platform Rated Load |
kg |
1495 |
| Gross Weight |
kg |
3940 |
| Curb weight |
kg |
2250 |
| Cargo compartment |
mm |
4200×2050×400/500 |
| Lifting angle |
/ |
≥45° |
| Lifting time |
s |
≤15 |
Video
Applications
This Sinotruk stake dump truck is mainly used for material loading and transportation, construction waste removal, municipal maintenance, leasing, agricultural product transportation, urban distribution, short-distance industrial and mining transportation, etc.
- Municipal maintenance: transportation of road materials, muck and seedlings
- Urban and rural logistics: agricultural product transportation and urban distribution
- Construction waste: muck and waste can be self-unloaded
- Special Functions: Leasing and Engineering Outsourcing
Why choose our HOWO cargo dump trucks?
- Efficient Loading and Unloading: Equipped with hydraulic self-dumping and fence plate structures, bulk cargo can be directly dumped, and piece goods can be flexibly bound, saving a great deal of loading and unloading time compared with ordinary trucks.
- Flexible Passability: The light truck version has a body length of less than 6 meters and a short wheelbase, enabling smooth passage on narrow urban streets, rural roads, and construction site access roads.
- Reliable Load-Bearing Capacity: Reinforced frame and chassis, suitable for short-distance heavy-duty transportation of 5–18 tons, with high durability.
Comprehensive Safety Protection
- 360° panoramic view system: Covers blind spots around the vehicle, allowing clear observation of the surrounding environment when reversing, meeting oncoming vehicles on narrow roads, or operating at construction sites, eliminating scratches and collisions caused by visual blind spots.
- Brake system: Equipped with standard air-cut brakes + ABS anti-lock braking system. EBD electronic brake-force distribution and ESC electronic stability control are available as optional features, providing more stable braking on downhill and slippery roads and preventing sideslip and tail flick.
- Hydraulic dump safety lock: Automatically locks when the cargo box is lifted, preventing accidental lowering of the cargo box due to improper operation and protecting the safety of loading and unloading personnel.
Technical Specifications
| Category |
Item |
Unit |
Data |
| Overall Dimensions |
Length |
mm |
5990 |
| Width |
mm |
2020 |
| Height |
mm |
2450 |
| Rated Passengers |
Persons |
3 |
| Wheelbase |
mm |
3280 |
| Tires |
/ |
7.00R16 |
| Main Performance |
Platform Rated Load |
kg |
1495 |
| Gross Weight |
kg |
3940 |
| Curb weight |
kg |
2250 |
| Cargo compartment |
mm |
4200×2050×400/500 |
| Lifting angle |
/ |
≥45° |
| Lifting time |
s |
≤15 |
Video
Drawing
Main Components
-
Hydraulic Lift Cylinder
The lifting，falling and resetting of the cargo box are completed through power take-off，pressurization and work application
-
-

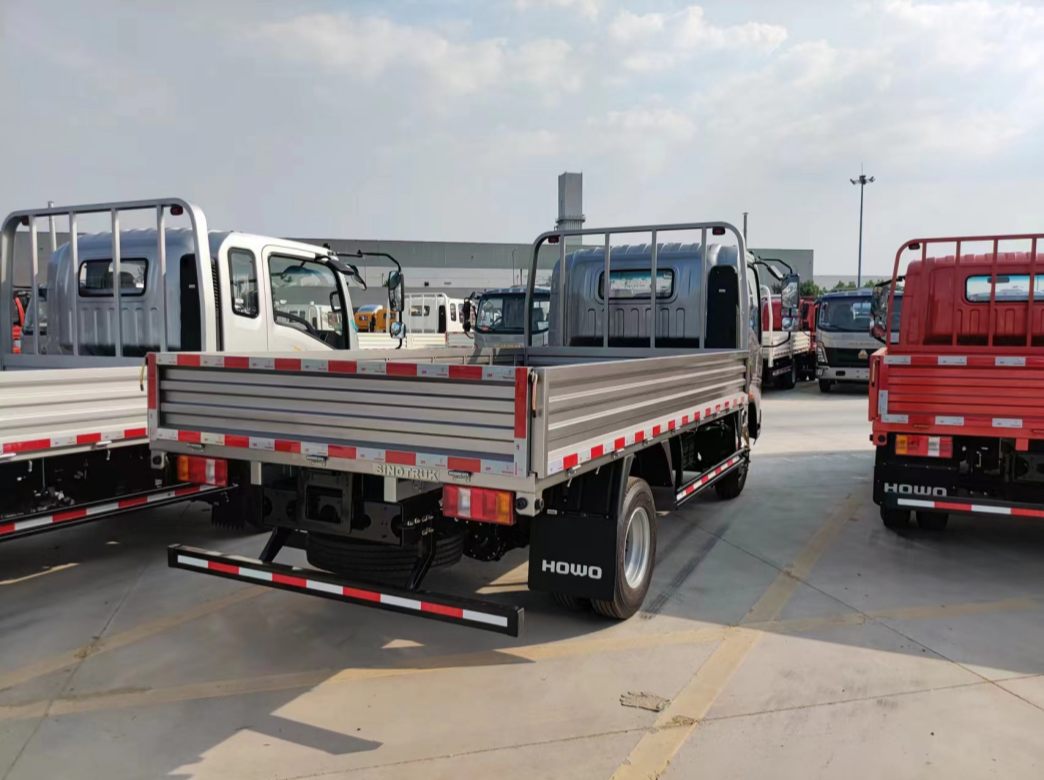

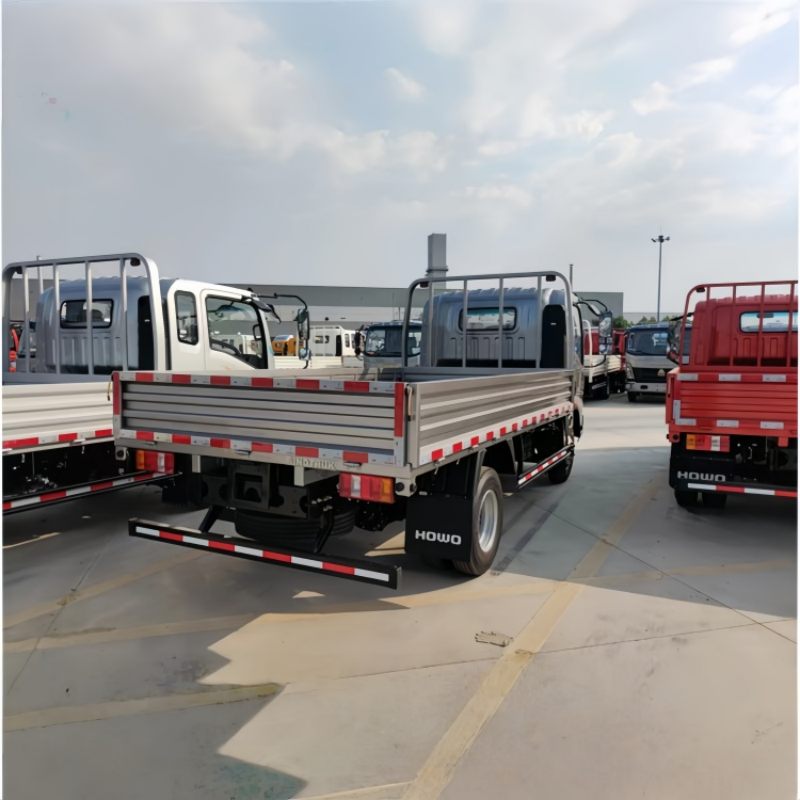

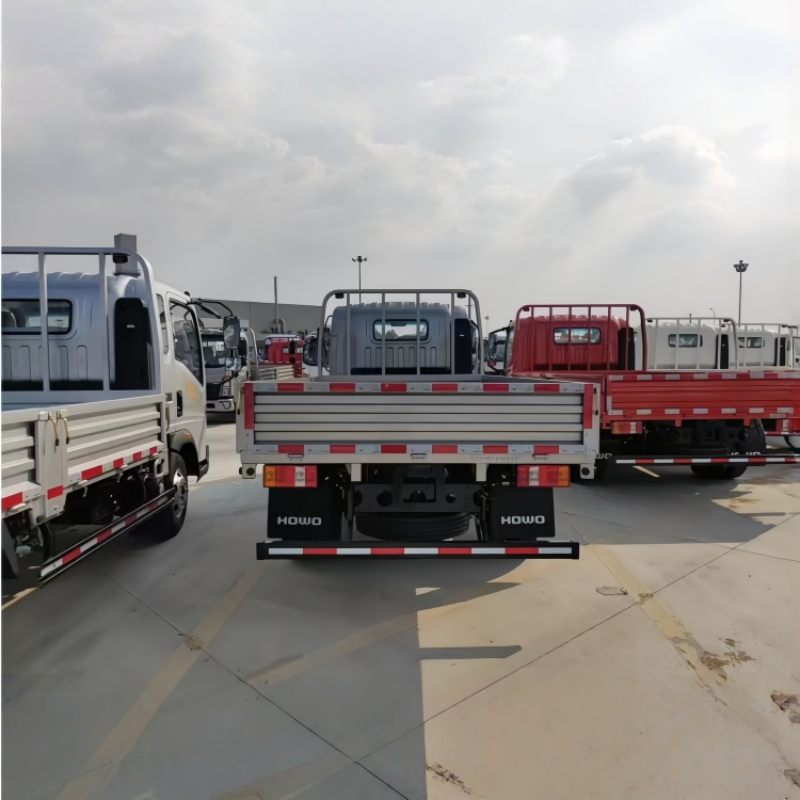

Cargo box tailgate
Easy to load and unload facilitate the loading and unloading of goods by forklifts or manually
-
Reliable Warranty & Global Support
- 12-Month Warranty: Full vehicle coverage (excluding wear parts) for your peace of mind.
- Instant Technical Support: 24/7 technical feedback with immediate solutions for any fault.
- Free Operator Training: On-site or remote training on hydraulics, safety, and operation.
- Global parts supply: Rapid delivery of wearing parts to minimize equipment downtime.
- Multi-Brand Support: Professional diagnostic guidance even for your existing fleet of other brands.
Frequently Asked Questions
Q: What is the delivery lead time for customized stake-side cargo dump trucks?
A: Standard configurations are usually ready in 15–25 days. Custom painting or specific emission requirements may take up to 35 days.
Q: Does the truck come with a certification for international standards?
A: Yes, our aerial work platforms comply with ISO and CE standards, and the HOWO chassis meets global quality benchmarks.
Q: Can this truck operate in narrow city streets?
A: Absolutely. The HOWO 4x2 chassis is designed with a compact turning radius, making it highly maneuverable for urban maintenance.
Q: What are your shipping conditions?
A:Normally,we transport trucks via roll-on/roll-off ships, bulk carriers, and containers. Spare parts are packed in wooden cases and transported by container.
Q: Can you fully customize according to my requirements?
A: Yes. We have a professional R&D team and can accurately produce products according to your requirements.
